Friction Stay Hinges
1 product images

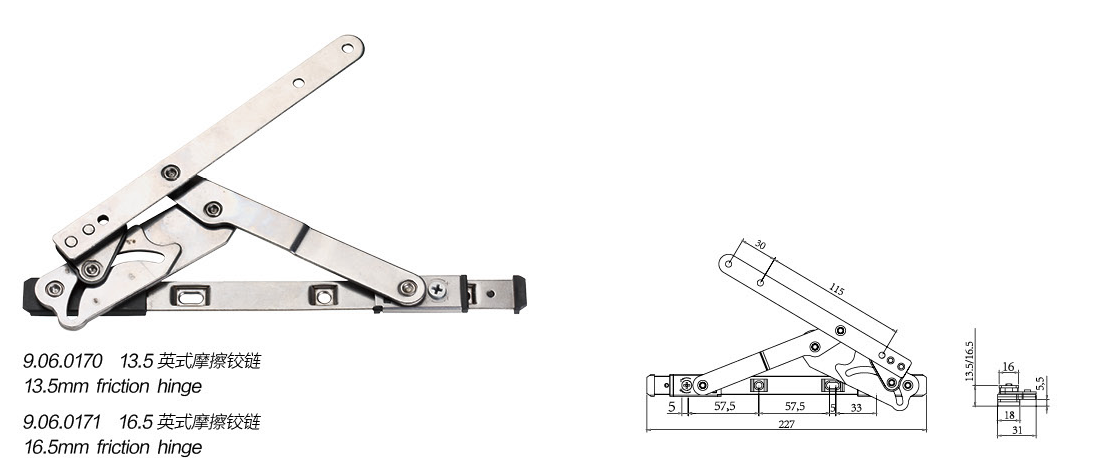

13.5 / 16.5 mm British friction hinges
Model: 9.06.0170 / 9.06.0171
View product detailsNo matching designs. Try another name or model.
Friction Stay Hinges
13.5 / 16.5 mm British friction hinges
Model: 9.06.0170 / 9.06.0171
9.06.0170 / 9.06.0171
UPVC-064
Application & fitting requirements
| Typical markets | British outward-opening windows; related friction-stay products are also used in Australia and New Zealand. |
|---|---|
| Application | Linked arms support and guide the sash while the sliding mechanism controls movement. |
| Opening arrangement | Specify side-hung or top-hung use, handing and the required opening function. |
| Stack height | Match the closed assembly height between the frame and sash mounting faces. |
| Track and fixings | Specify track length and width, fixing centres and the available rebate. |
| Selection limits | Provide sash width, height, mass and opening angle. Egress or easy-clean functions require a design specifically verified for that purpose. |
Application & fitting requirements
| Typical markets | British outward-opening windows; related friction-stay products are also used in Australia and New Zealand. |
|---|---|
| Application | Linked arms support and guide the sash while the sliding mechanism controls movement. |
| Opening arrangement | Specify side-hung or top-hung use, handing and the required opening function. |
| Stack height | Match the closed assembly height between the frame and sash mounting faces. |
| Track and fixings | Specify track length and width, fixing centres and the available rebate. |
| Selection limits | Provide sash width, height, mass and opening angle. Egress or easy-clean functions require a design specifically verified for that purpose. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.
| 9.06.0170 / 9.06.0171 | UPVC-064 |
|---|
Design variants & installation references
Choose a reference to inspect its designs, dimensions and profile interfaces. Values belong to the models and configurations shown on that reference.
Designs & component dimensions

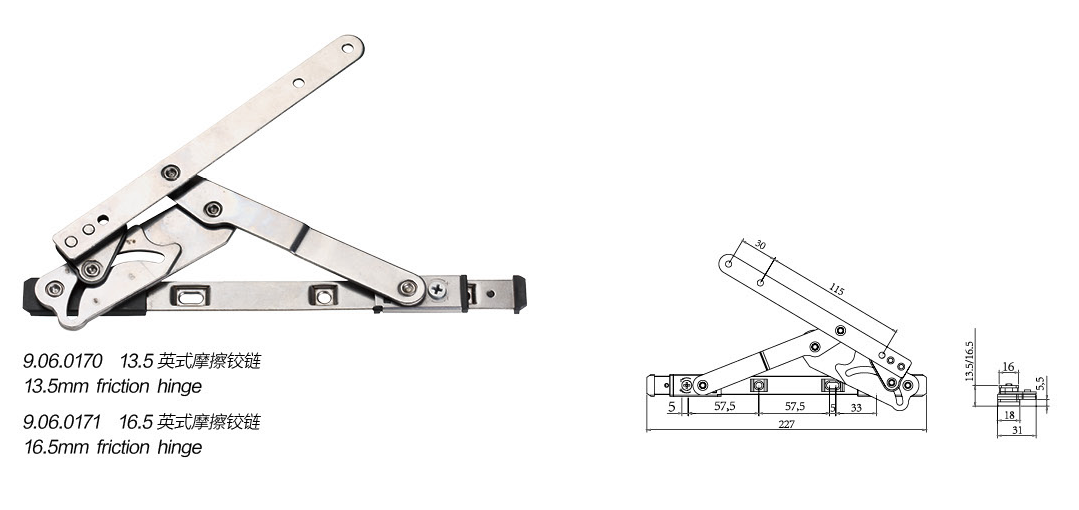

British friction-stay stack-height referencesUPVC · PDF 64 · left panel
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
