Awning Window Operators
5 product images
L-series X-arm awning operator
Model: 01/1505
View product details
L-series awning operator
Model: 01/1507
View product details
Awning operator
Model: 01/1501 / 01/1511R
View product details
Y-series X-arm awning operator
Model: 01/1504 L/R
View product details
Y-series awning operator
Model: 01/1506 / 1508 / 1509 / 1510 L/R
View product detailsNo matching designs. Try another name or model.
Awning Window Operators

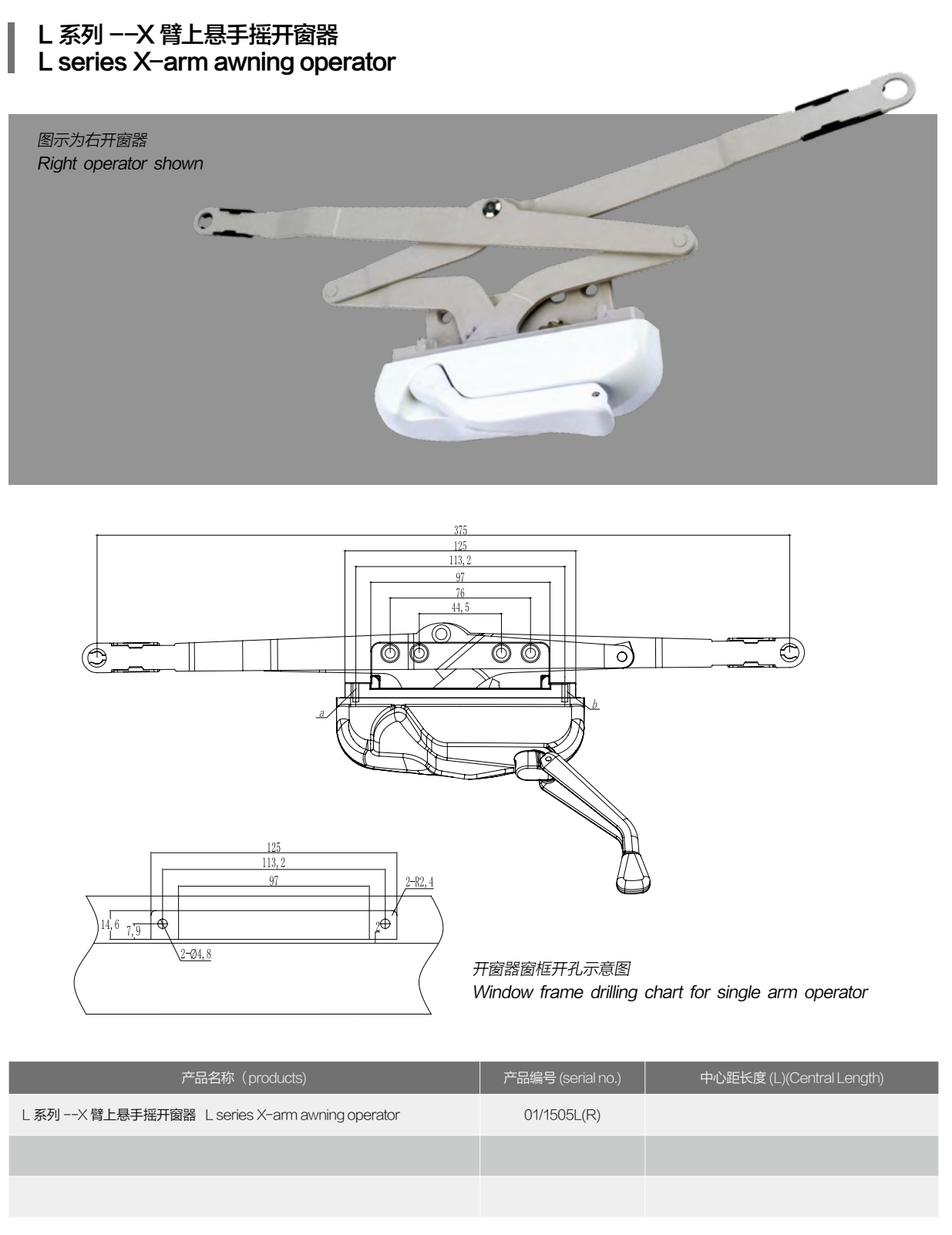

L-series X-arm awning operator
Model: 01/1505
01/1505
OP-017
Application & fitting requirements
| Typical markets | United States and Canada, in compatible top-hung awning window applications. |
|---|---|
| Application | The mechanism pushes the lower edge of an awning sash outward while the hinges guide its movement. |
| Window layout | Specify sash width, height and mass, and the top-hung hinge arrangement. |
| Arm positions | Match arm length, spread and sash connection spacing for the selected design. |
| Mounting and clearance | Confirm base fixings, housing position and clearance through the full stroke. |
| Opening travel | Define the required travel and the compatible track, bracket or connecting linkage. |
Awning Window Operators

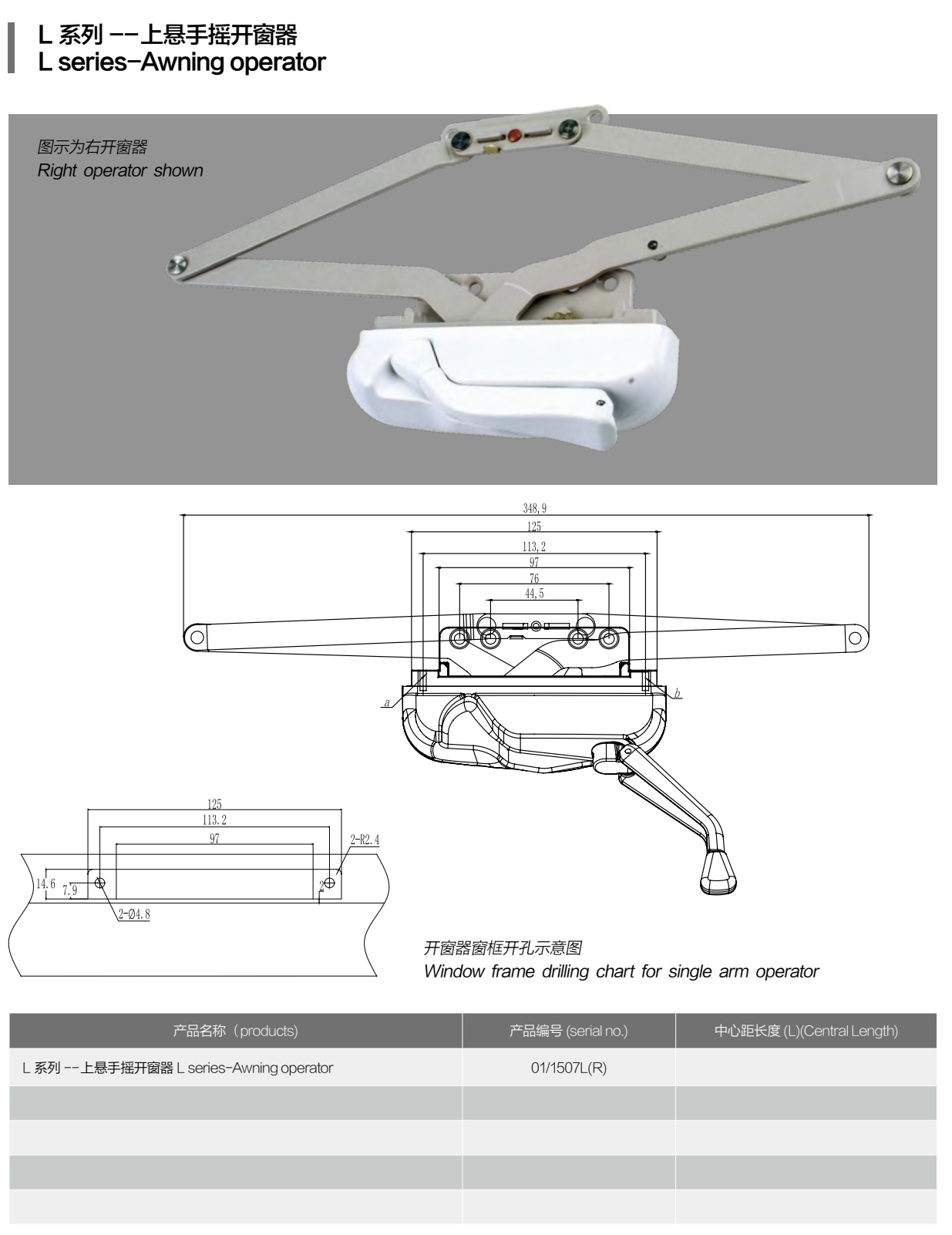

L-series awning operator
Model: 01/1507
01/1507
OP-018
Application & fitting requirements
| Typical markets | United States and Canada, in compatible top-hung awning window applications. |
|---|---|
| Application | The mechanism pushes the lower edge of an awning sash outward while the hinges guide its movement. |
| Window layout | Specify sash width, height and mass, and the top-hung hinge arrangement. |
| Arm positions | Match arm length, spread and sash connection spacing for the selected design. |
| Mounting and clearance | Confirm base fixings, housing position and clearance through the full stroke. |
| Opening travel | Define the required travel and the compatible track, bracket or connecting linkage. |
Awning Window Operators

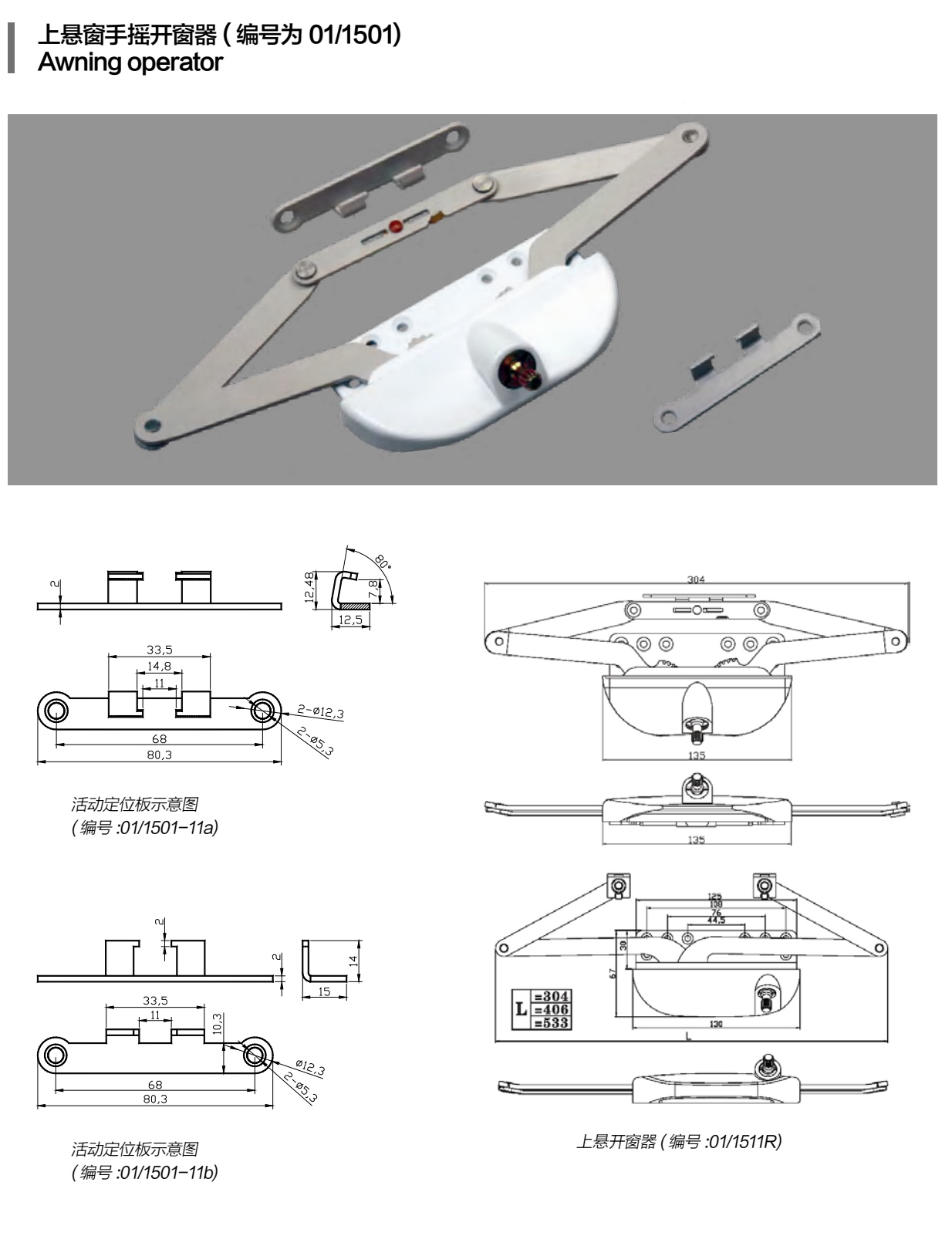

Awning operator
Model: 01/1501 / 01/1511R
01/1501 / 01/1511R
OP-028
Application & fitting requirements
| Typical markets | United States and Canada, in compatible top-hung awning window applications. |
|---|---|
| Application | The mechanism pushes the lower edge of an awning sash outward while the hinges guide its movement. |
| Window layout | Specify sash width, height and mass, and the top-hung hinge arrangement. |
| Arm positions | Match arm length, spread and sash connection spacing for the selected design. |
| Mounting and clearance | Confirm base fixings, housing position and clearance through the full stroke. |
| Opening travel | Define the required travel and the compatible track, bracket or connecting linkage. |
Awning Window Operators

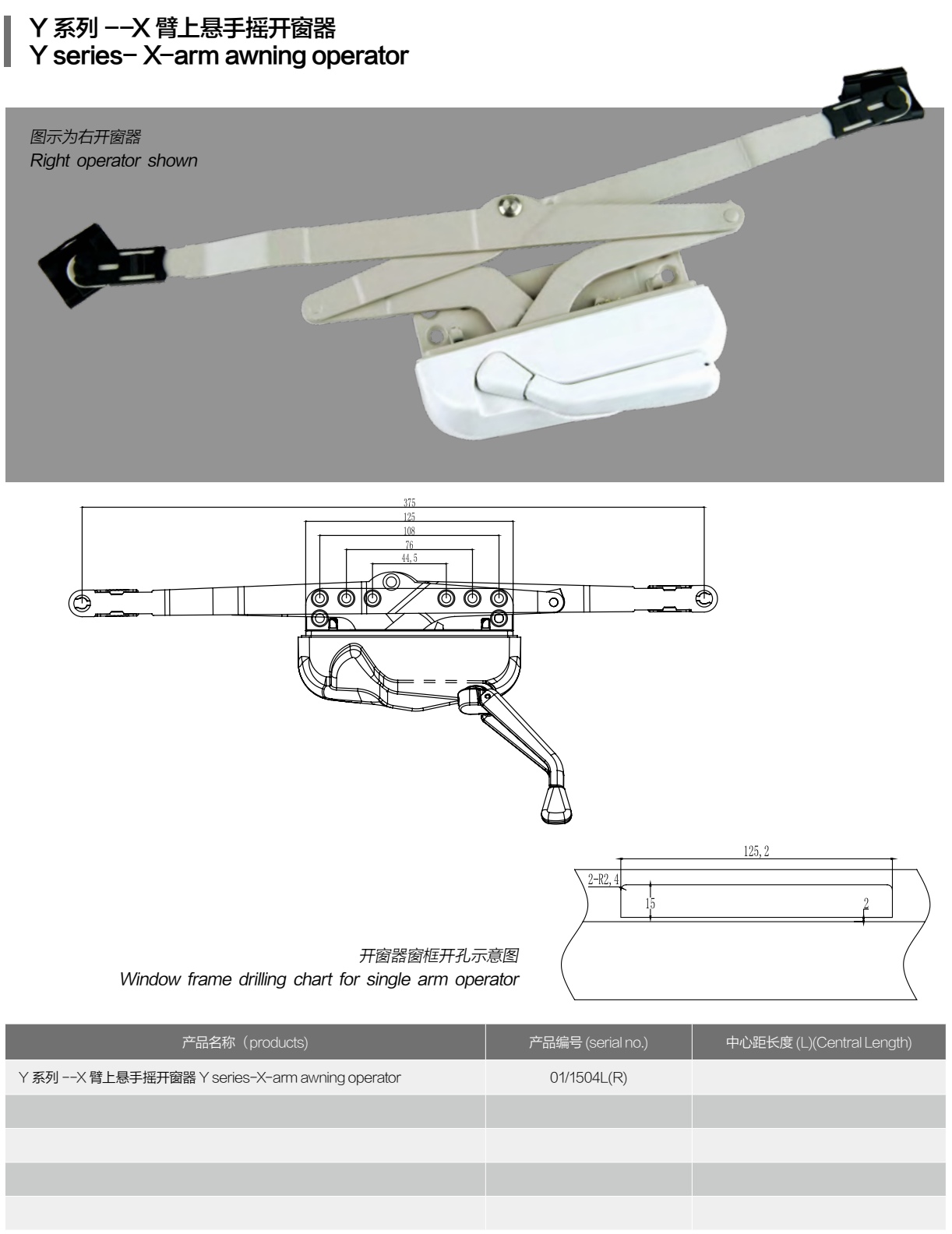

Y-series X-arm awning operator
Model: 01/1504 L/R
01/1504 L/R
OP-020 · right panel
Application & fitting requirements
| Typical markets | United States and Canada, in compatible top-hung awning window applications. |
|---|---|
| Application | The mechanism pushes the lower edge of an awning sash outward while the hinges guide its movement. |
| Window layout | Specify sash width, height and mass, and the top-hung hinge arrangement. |
| Arm positions | Match arm length, spread and sash connection spacing for the selected design. |
| Mounting and clearance | Confirm base fixings, housing position and clearance through the full stroke. |
| Opening travel | Define the required travel and the compatible track, bracket or connecting linkage. |
Awning Window Operators

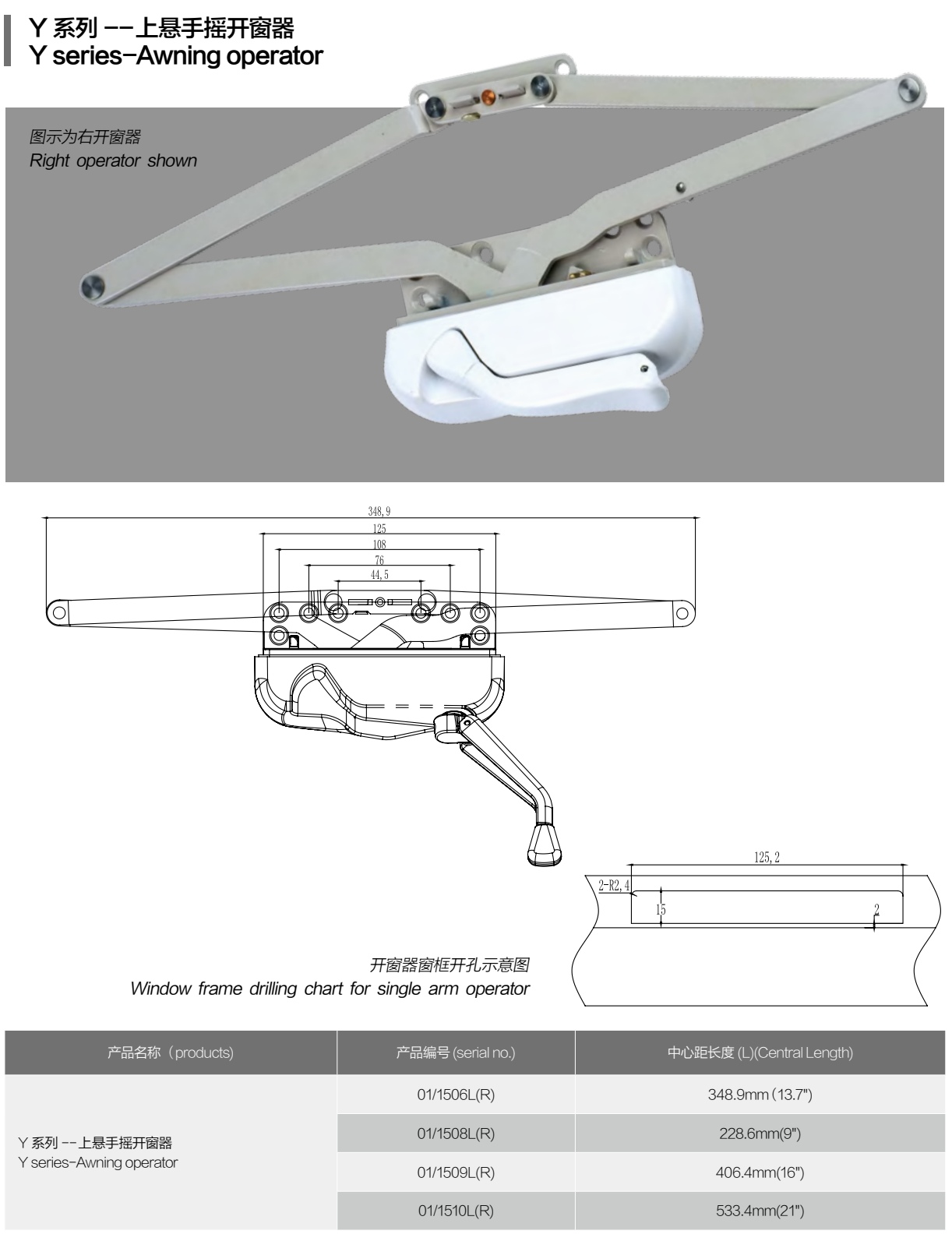

Y-series awning operator
Model: 01/1506 / 1508 / 1509 / 1510 L/R
01/1506 / 1508 / 1509 / 1510 L/R
OP-021 · right panel
Application & fitting requirements
| Typical markets | United States and Canada, in compatible top-hung awning window applications. |
|---|---|
| Application | The mechanism pushes the lower edge of an awning sash outward while the hinges guide its movement. |
| Window layout | Specify sash width, height and mass, and the top-hung hinge arrangement. |
| Arm positions | Match arm length, spread and sash connection spacing for the selected design. |
| Mounting and clearance | Confirm base fixings, housing position and clearance through the full stroke. |
| Opening travel | Define the required travel and the compatible track, bracket or connecting linkage. |
Application & fitting requirements
| Typical markets | United States and Canada, in compatible top-hung awning window applications. |
|---|---|
| Application | The mechanism pushes the lower edge of an awning sash outward while the hinges guide its movement. |
| Window layout | Specify sash width, height and mass, and the top-hung hinge arrangement. |
| Arm positions | Match arm length, spread and sash connection spacing for the selected design. |
| Mounting and clearance | Confirm base fixings, housing position and clearance through the full stroke. |
| Opening travel | Define the required travel and the compatible track, bracket or connecting linkage. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.
| 01/1505 | OP-017 |
|---|---|
| 01/1507 | OP-018 |
| 01/1501 / 01/1511R | OP-028 |
| 01/1504 L/R | OP-020 · right panel |
| 01/1506 / 1508 / 1509 / 1510 L/R | OP-021 · right panel |
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
