Operator Tracks & Related Components
Sash tracks for window operators, with related linkage components developed to project drawings.
3 product images
X-series single arm mounting track
Model: 01/0406
View product details
Dual arm operator mounting track
Model: 01/0404
View product details
X-arm operator mounting track
Model: 01/0408
View product detailsNo matching designs. Try another name or model.
Operator Tracks & Related Components
X-series single arm mounting track
Model: 01/0406
01/0406
OP-036
Application & fitting requirements
| Typical markets | North American crank-operated window manufacturing and component supply. |
|---|---|
| Application | The illustrated tracks guide the connected operator-arm end. Locking tie bars and their guides use a separate mechanism and interface. |
| Track section | Match channel opening, cross-section and the arm-end roller or slide. |
| Track positioning | Specify track length, fixing-hole positions and placement on the sash. |
| Operator engagement | Confirm retention, operating travel and clearance through the hinge path. |
| Related locking parts | For tie bars, guides or keepers, provide separate drawings with lock-point positions and actuator connections. |
Operator Tracks & Related Components
Dual arm operator mounting track
Model: 01/0404
01/0404
OP-036
Application & fitting requirements
| Typical markets | North American crank-operated window manufacturing and component supply. |
|---|---|
| Application | The illustrated tracks guide the connected operator-arm end. Locking tie bars and their guides use a separate mechanism and interface. |
| Track section | Match channel opening, cross-section and the arm-end roller or slide. |
| Track positioning | Specify track length, fixing-hole positions and placement on the sash. |
| Operator engagement | Confirm retention, operating travel and clearance through the hinge path. |
| Related locking parts | For tie bars, guides or keepers, provide separate drawings with lock-point positions and actuator connections. |
Operator Tracks & Related Components
X-arm operator mounting track
Model: 01/0408
01/0408
OP-036
Application & fitting requirements
| Typical markets | North American crank-operated window manufacturing and component supply. |
|---|---|
| Application | The illustrated tracks guide the connected operator-arm end. Locking tie bars and their guides use a separate mechanism and interface. |
| Track section | Match channel opening, cross-section and the arm-end roller or slide. |
| Track positioning | Specify track length, fixing-hole positions and placement on the sash. |
| Operator engagement | Confirm retention, operating travel and clearance through the hinge path. |
| Related locking parts | For tie bars, guides or keepers, provide separate drawings with lock-point positions and actuator connections. |
Application & fitting requirements
| Typical markets | North American crank-operated window manufacturing and component supply. |
|---|---|
| Application | The illustrated tracks guide the connected operator-arm end. Locking tie bars and their guides use a separate mechanism and interface. |
| Track section | Match channel opening, cross-section and the arm-end roller or slide. |
| Track positioning | Specify track length, fixing-hole positions and placement on the sash. |
| Operator engagement | Confirm retention, operating travel and clearance through the hinge path. |
| Related locking parts | For tie bars, guides or keepers, provide separate drawings with lock-point positions and actuator connections. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.
| Illustrated tracks | 01/0406; 01/0404; 01/0408 |
|---|---|
| Track matching | Cross-section, slot and operator arm-end engagement |
| Related locking components | Tie bars, guides and keepers require separate project drawings |
| Fixing | Use the mounting dimensions of the selected track |
Design variants & installation references
Choose a reference to inspect its designs, dimensions and profile interfaces. Values belong to the models and configurations shown on that reference.
Designs & component dimensions
Operator brackets, keepers, guides and tracksUPVC · PDF 82 · left panel
Operator brackets, keepers, guides and tracksUPVC · PDF 82 · right panel
Operator brackets, keepers, guides and tracksUPVC · PDF 83 · left panel
Operator brackets, keepers, guides and tracksUPVC · PDF 83 · right panel
Channel tie-bar lengths and locking-point positionsUPVC · PDF 84 · left panel

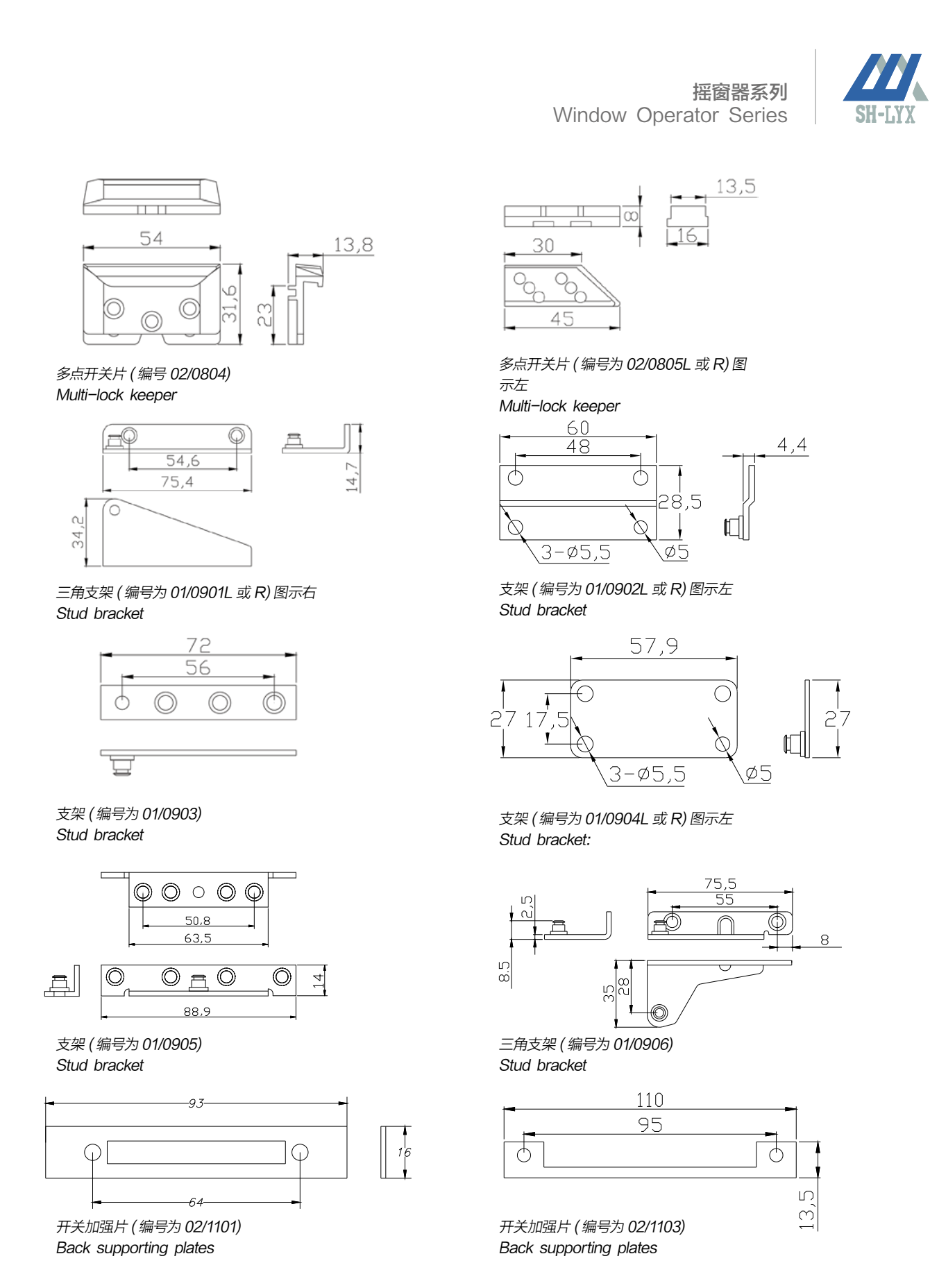

Operator-series designs, sizes and mating geometryOP · PDF 34 · right panel

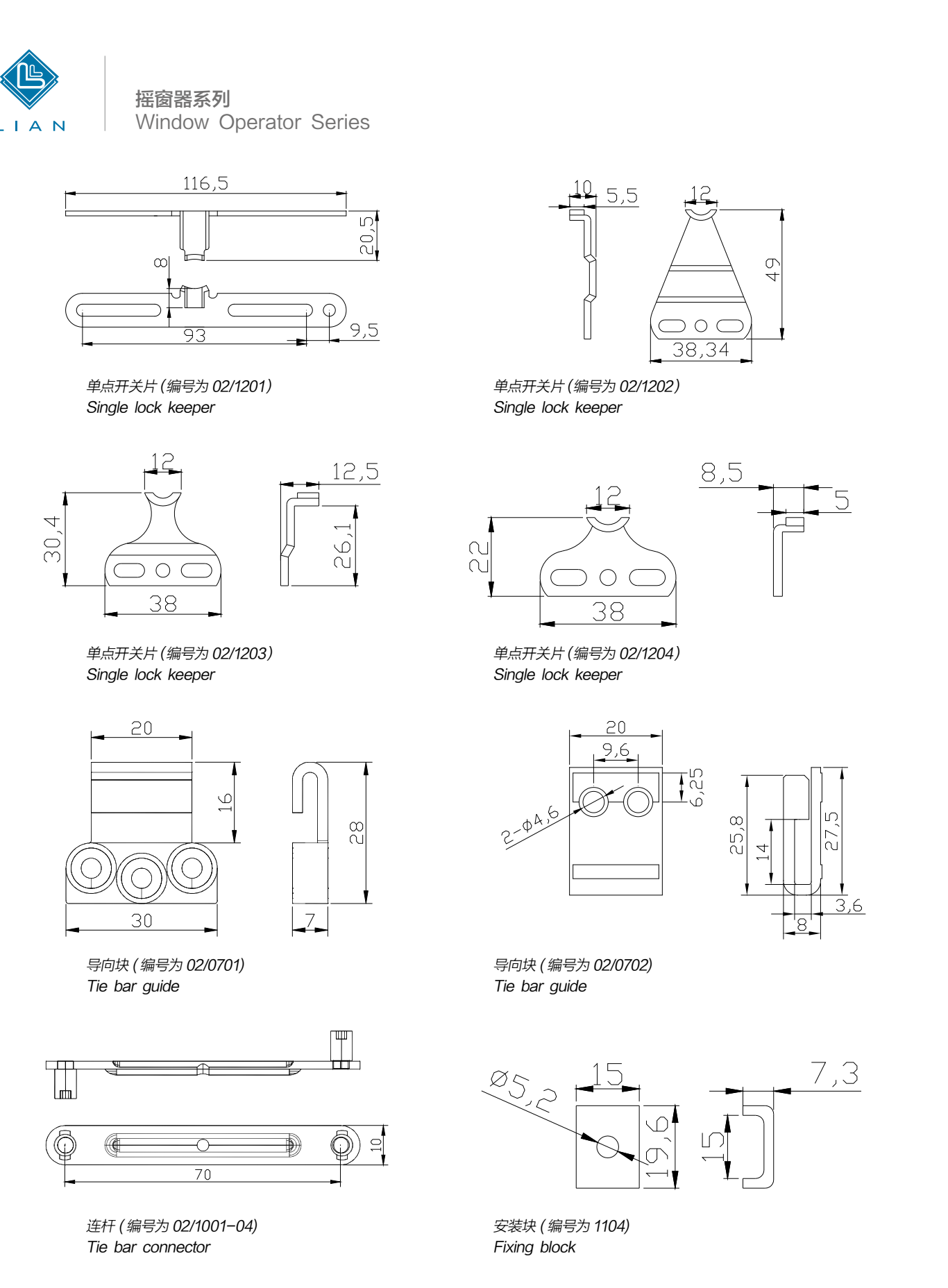

Operator-series designs, sizes and mating geometryOP · PDF 35 · left panel

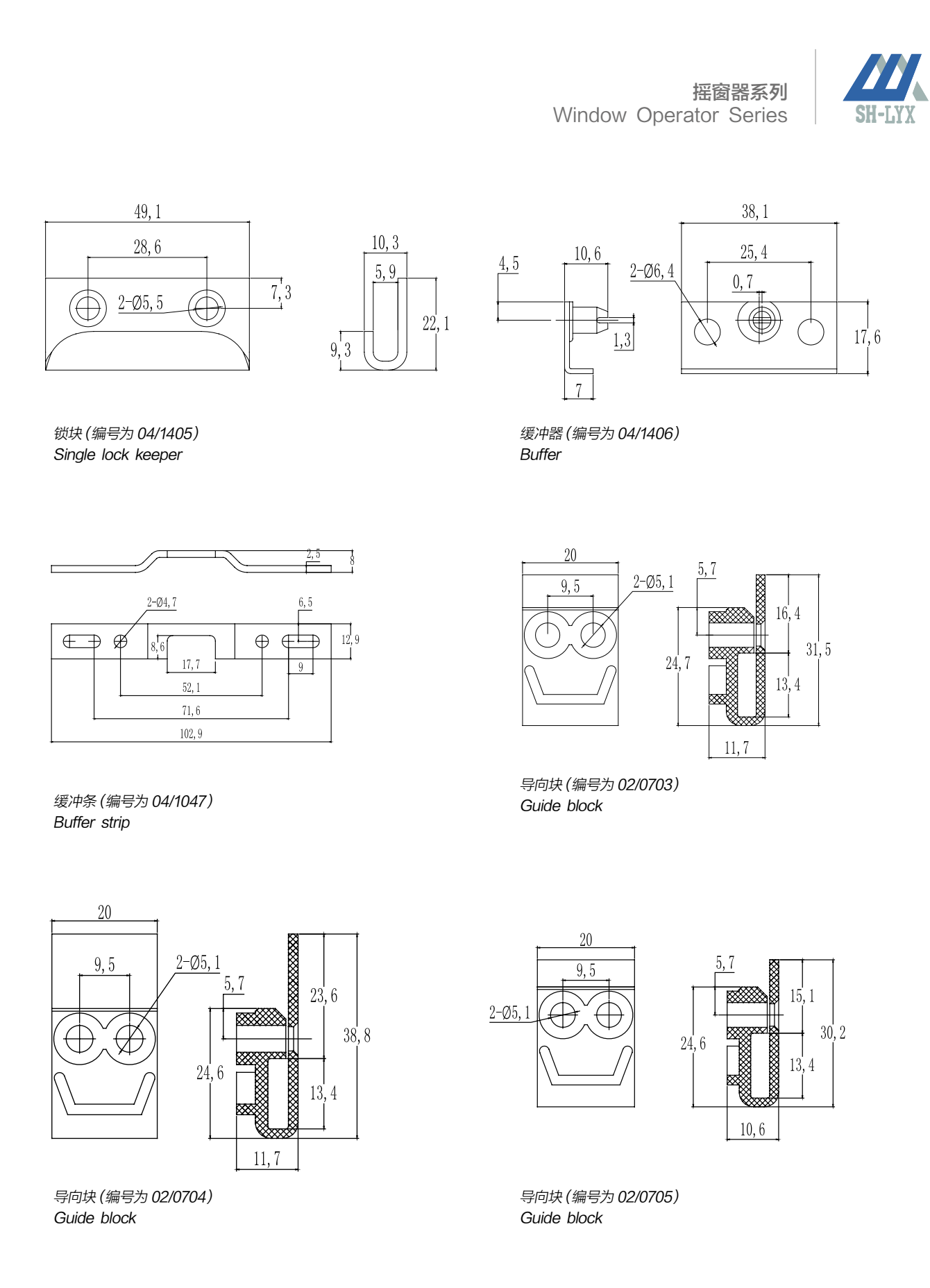

Operator-series designs, sizes and mating geometryOP · PDF 35 · right panel

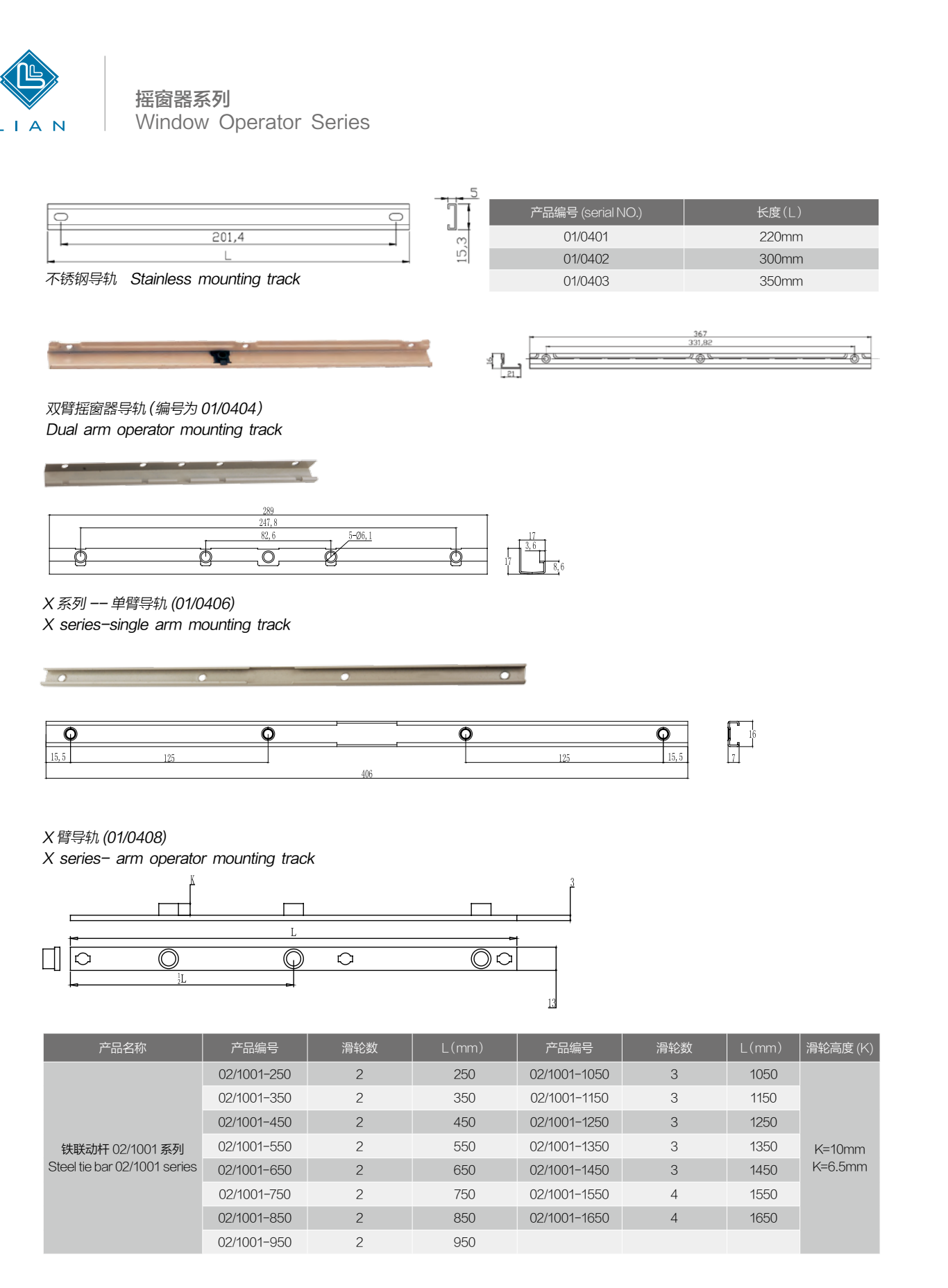

Operator-series designs, sizes and mating geometryOP · PDF 36 · left panel

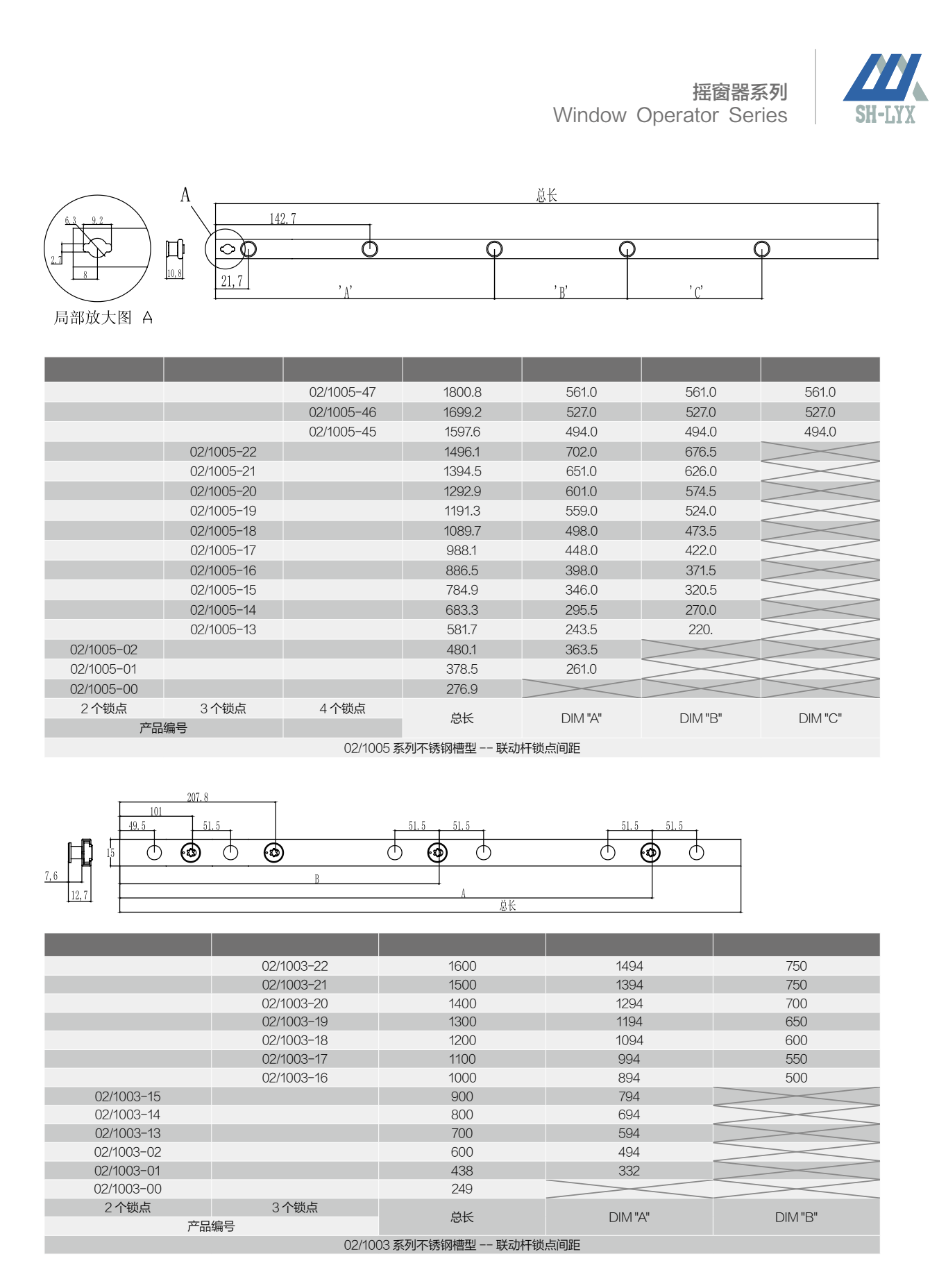

Operator-series designs, sizes and mating geometryOP · PDF 36 · right panel
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
