Euro-Profile Cylinders
Euro-profile cylinders for matching door lock bodies.
3 product images
Euro-profile lock cylinders
View product details
Half cylinder
Model: 9.03.0138
View product details
Cylinder with button
Model: 9.03.0139
View product detailsNo matching designs. Try another name or model.
Euro-Profile Cylinders
Euro-profile lock cylinders
Installation interface
Confirm the selected design against the mating hardware, profile section and agreed drawing.
Application & fitting requirements
| Typical markets | European, British and Irish door hardware applications. |
|---|---|
| Application | A key or thumbturn rotates the cylinder cam to operate a compatible lock. |
| Cylinder lengths | Specify the inside and outside lengths separately, each measured from the central fixing-screw axis. |
| Lock interface | Match the profile section, cam shape and position, and fixing screw to the lockcase. |
| Door assembly | Include door thickness, backplates or escutcheons and the permitted cylinder projection. |
| Operation and specification | Specify key/key, key/turn or half-cylinder operation, keying and the required performance evidence. |
Euro-Profile Cylinders

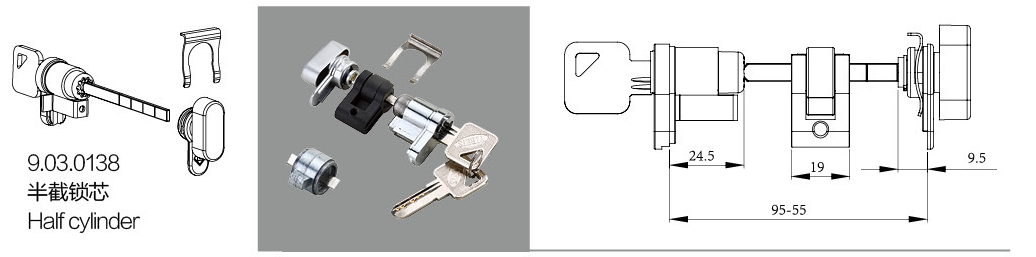

Half cylinder
Model: 9.03.0138
9.03.0138
AL-036
Application & fitting requirements
| Typical markets | European, British and Irish door hardware applications. |
|---|---|
| Application | A key or thumbturn rotates the cylinder cam to operate a compatible lock. |
| Cylinder lengths | Specify the inside and outside lengths separately, each measured from the central fixing-screw axis. |
| Lock interface | Match the profile section, cam shape and position, and fixing screw to the lockcase. |
| Door assembly | Include door thickness, backplates or escutcheons and the permitted cylinder projection. |
| Operation and specification | Specify key/key, key/turn or half-cylinder operation, keying and the required performance evidence. |
Euro-Profile Cylinders

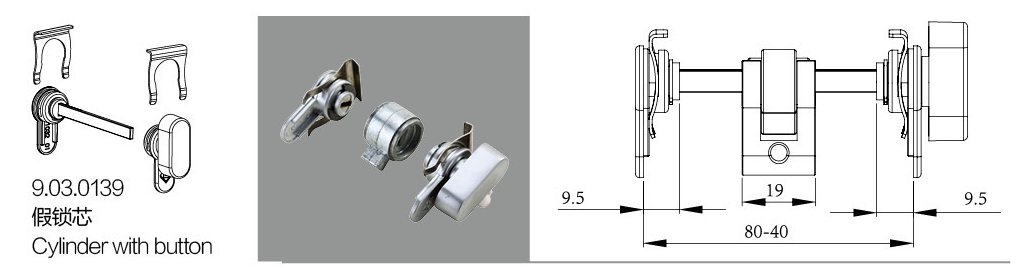

Cylinder with button
Model: 9.03.0139
9.03.0139
AL-036
Application & fitting requirements
| Typical markets | European, British and Irish door hardware applications. |
|---|---|
| Application | A key or thumbturn rotates the cylinder cam to operate a compatible lock. |
| Cylinder lengths | Specify the inside and outside lengths separately, each measured from the central fixing-screw axis. |
| Lock interface | Match the profile section, cam shape and position, and fixing screw to the lockcase. |
| Door assembly | Include door thickness, backplates or escutcheons and the permitted cylinder projection. |
| Operation and specification | Specify key/key, key/turn or half-cylinder operation, keying and the required performance evidence. |
Application & fitting requirements
| Typical markets | European, British and Irish door hardware applications. |
|---|---|
| Application | A key or thumbturn rotates the cylinder cam to operate a compatible lock. |
| Cylinder lengths | Specify the inside and outside lengths separately, each measured from the central fixing-screw axis. |
| Lock interface | Match the profile section, cam shape and position, and fixing screw to the lockcase. |
| Door assembly | Include door thickness, backplates or escutcheons and the permitted cylinder projection. |
| Operation and specification | Specify key/key, key/turn or half-cylinder operation, keying and the required performance evidence. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.
| Cylinder form | Euro-profile; operation selected by design |
|---|---|
| Length selection | Internal and external lengths measured from the central fixing |
| Lock interface | Cylinder profile, cam geometry and fixing screw |
| Project specification | Keying, operation, finish and agreed dimensional drawing |
Design variants & installation references
Choose a reference to inspect its designs, dimensions and profile interfaces. Values belong to the models and configurations shown on that reference.
Designs & component dimensions

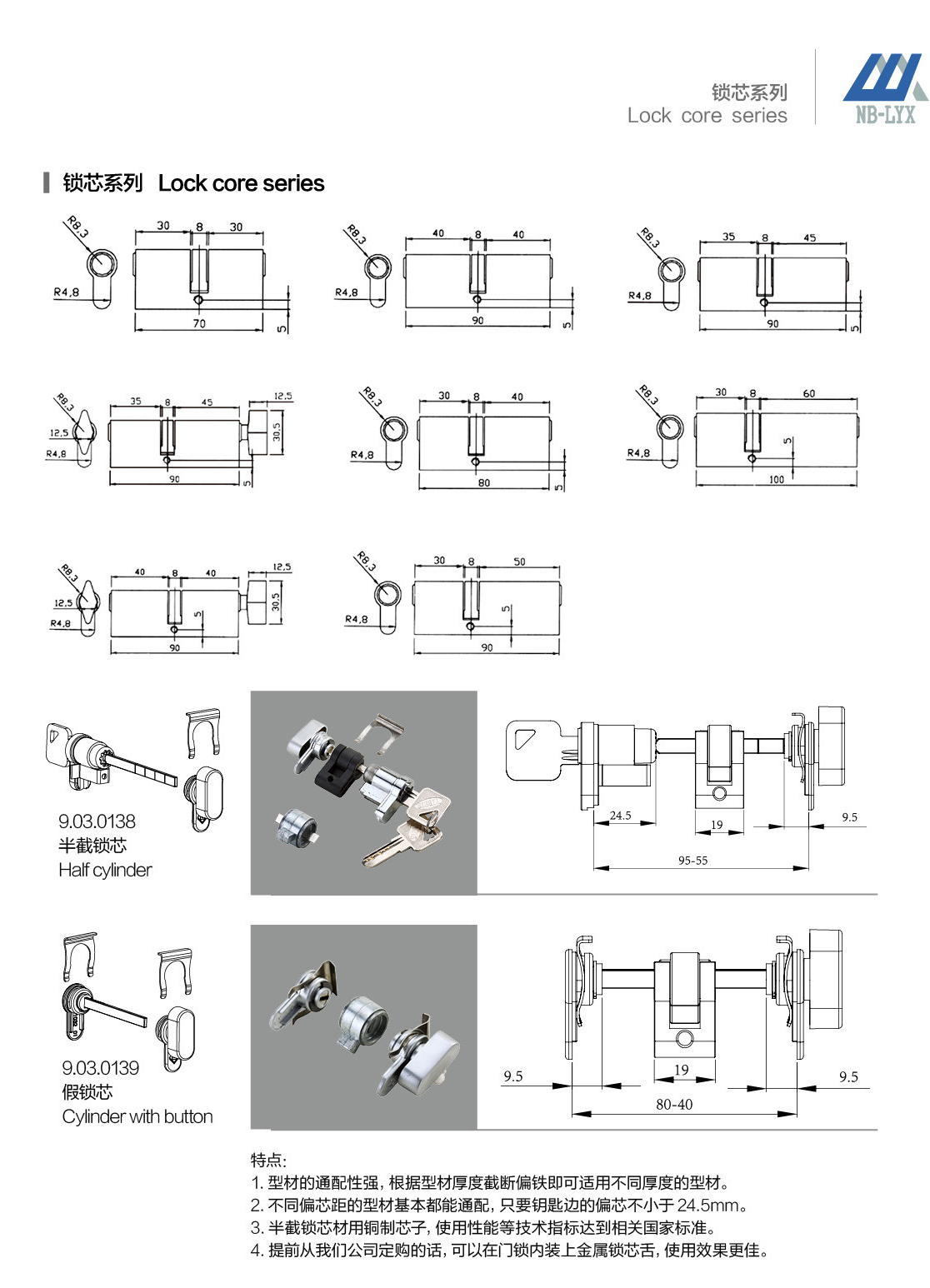

Cylinder dimensions and fitting geometryAL · PDF 36 · right panel

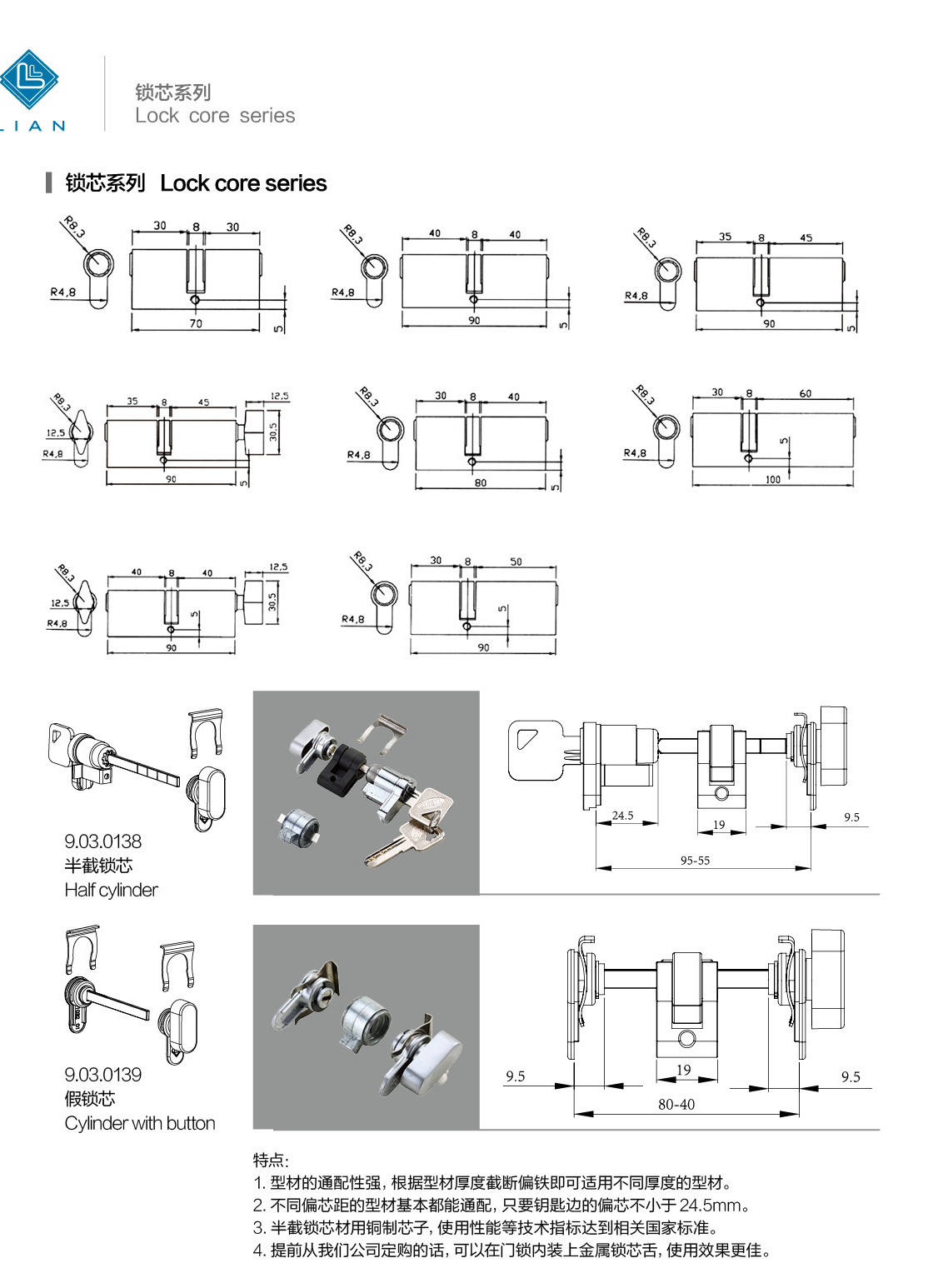

Euro-profile cylinders and size variantsUPVC · PDF 54 · left panel

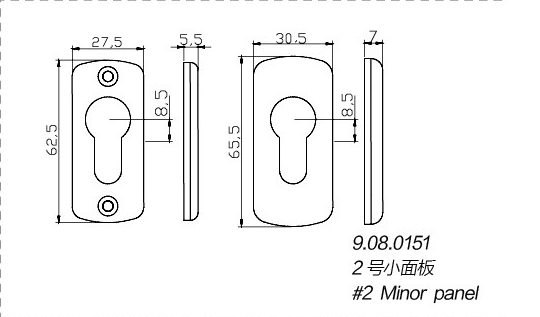

Cylinder escutcheon dimensionsAL · PDF 56 · left panel

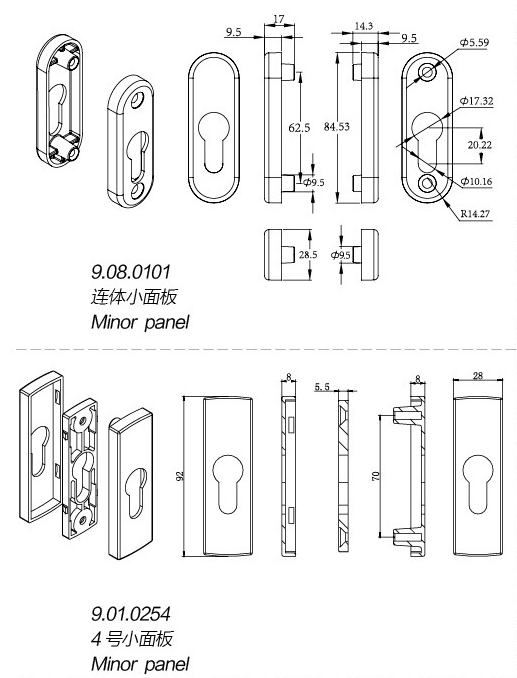

Cylinder escutcheon design dimensionsUPVC · PDF 99 · left panel
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
