Espagnolette Window Handles
Square-spindle espagnolette handles for outward-opening casement windows.
5 product images
English #2 Chain Lock Handle
Model: 9.01.0079
View product details
Exterior special #18 handle (aluminum)
Model: 9.01.0261
View product details
Outward #14-2 handle
Model: 9.01.0308
View product details
Outward #17 handle (zinc)
Model: 9.01.0267
View product details
Key-locking window handle — rear view
View product detailsNo matching designs. Try another name or model.
Espagnolette Window Handles
English #2 Chain Lock Handle
Model: 9.01.0079
9.01.0079
UPVC-028
Application & fitting requirements
| Typical markets | British espagnolette-window applications and other markets using the same fixing and spindle interface; compatibility is profile- and gearbox-specific. |
|---|---|
| Application | The square spindle drives an espagnolette gearbox inside the sash. Espag is the common abbreviation for espagnolette. |
| Fixing centres | Use the centre-to-centre distance of the two mounting screws; the four catalogue models below show 43 mm. |
| Spindle | Specify square size and projection from the mounting face to suit gearbox engagement. |
| Handle form | Select inline or offset geometry, handing and handle-to-frame clearance from the individual design. |
| Locking and fixing | Specify key-locking or non-locking operation, screw length and engagement in the selected profile. |
Espagnolette Window Handles
Exterior special #18 handle (aluminum)
Model: 9.01.0261
9.01.0261
UPVC-031
Application & fitting requirements
| Typical markets | British espagnolette-window applications and other markets using the same fixing and spindle interface; compatibility is profile- and gearbox-specific. |
|---|---|
| Application | The square spindle drives an espagnolette gearbox inside the sash. Espag is the common abbreviation for espagnolette. |
| Fixing centres | Use the centre-to-centre distance of the two mounting screws; the four catalogue models below show 43 mm. |
| Spindle | Specify square size and projection from the mounting face to suit gearbox engagement. |
| Handle form | Select inline or offset geometry, handing and handle-to-frame clearance from the individual design. |
| Locking and fixing | Specify key-locking or non-locking operation, screw length and engagement in the selected profile. |
Espagnolette Window Handles
Outward #14-2 handle
Model: 9.01.0308
9.01.0308
UPVC-032
Application & fitting requirements
| Typical markets | British espagnolette-window applications and other markets using the same fixing and spindle interface; compatibility is profile- and gearbox-specific. |
|---|---|
| Application | The square spindle drives an espagnolette gearbox inside the sash. Espag is the common abbreviation for espagnolette. |
| Fixing centres | Use the centre-to-centre distance of the two mounting screws; the four catalogue models below show 43 mm. |
| Spindle | Specify square size and projection from the mounting face to suit gearbox engagement. |
| Handle form | Select inline or offset geometry, handing and handle-to-frame clearance from the individual design. |
| Locking and fixing | Specify key-locking or non-locking operation, screw length and engagement in the selected profile. |
Espagnolette Window Handles
Outward #17 handle (zinc)
Model: 9.01.0267
9.01.0267
UPVC-032
Application & fitting requirements
| Typical markets | British espagnolette-window applications and other markets using the same fixing and spindle interface; compatibility is profile- and gearbox-specific. |
|---|---|
| Application | The square spindle drives an espagnolette gearbox inside the sash. Espag is the common abbreviation for espagnolette. |
| Fixing centres | Use the centre-to-centre distance of the two mounting screws; the four catalogue models below show 43 mm. |
| Spindle | Specify square size and projection from the mounting face to suit gearbox engagement. |
| Handle form | Select inline or offset geometry, handing and handle-to-frame clearance from the individual design. |
| Locking and fixing | Specify key-locking or non-locking operation, screw length and engagement in the selected profile. |
Espagnolette Window Handles
Key-locking window handle — rear view
Installation interface
Confirm the selected design against the mating hardware, profile section and agreed drawing.
Application & fitting requirements
| Typical markets | British espagnolette-window applications and other markets using the same fixing and spindle interface; compatibility is profile- and gearbox-specific. |
|---|---|
| Application | The square spindle drives an espagnolette gearbox inside the sash. Espag is the common abbreviation for espagnolette. |
| Fixing centres | Use the centre-to-centre distance of the two mounting screws; the four catalogue models below show 43 mm. |
| Spindle | Specify square size and projection from the mounting face to suit gearbox engagement. |
| Handle form | Select inline or offset geometry, handing and handle-to-frame clearance from the individual design. |
| Locking and fixing | Specify key-locking or non-locking operation, screw length and engagement in the selected profile. |
Application & fitting requirements
| Typical markets | British espagnolette-window applications and other markets using the same fixing and spindle interface; compatibility is profile- and gearbox-specific. |
|---|---|
| Application | The square spindle drives an espagnolette gearbox inside the sash. Espag is the common abbreviation for espagnolette. |
| Fixing centres | Use the centre-to-centre distance of the two mounting screws; the four catalogue models below show 43 mm. |
| Spindle | Specify square size and projection from the mounting face to suit gearbox engagement. |
| Handle form | Select inline or offset geometry, handing and handle-to-frame clearance from the individual design. |
| Locking and fixing | Specify key-locking or non-locking operation, screw length and engagement in the selected profile. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.
| Illustrated reference models | 9.01.0079 / 9.01.0261 / 9.01.0308 / 9.01.0267 |
|---|---|
| Fixing centres — all four references | 43 mm, shown in each model drawing |

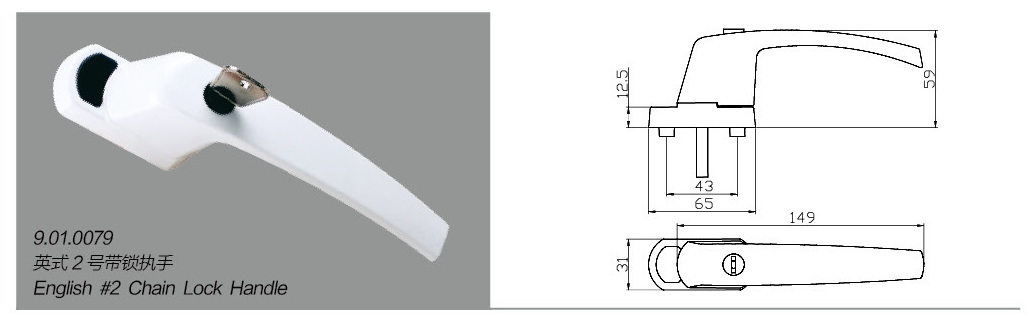

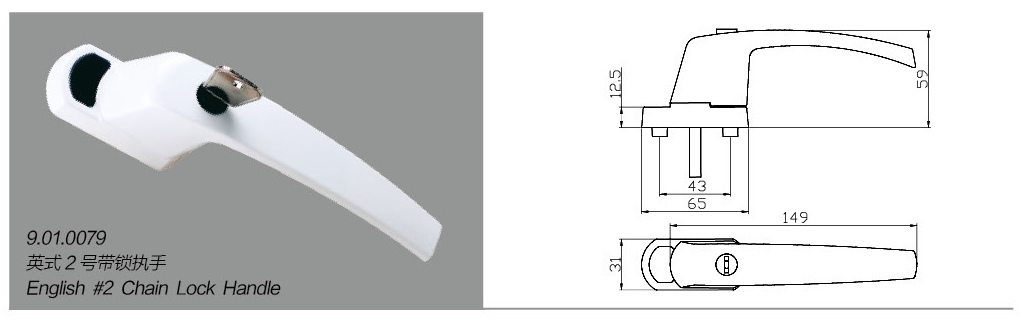

| 9.01.0079 — key-locking espagnolette handle | 65 mm base length; 31 mm base width; 149 mm overall plan length; 59 mm projection |

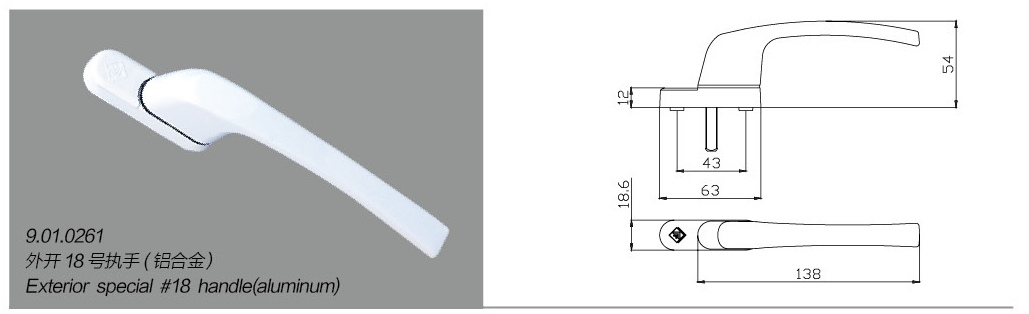

| 9.01.0261 — non-locking espagnolette handle | 63 mm base length; 18.6 mm base width; 138 mm plan length; 54 mm projection |

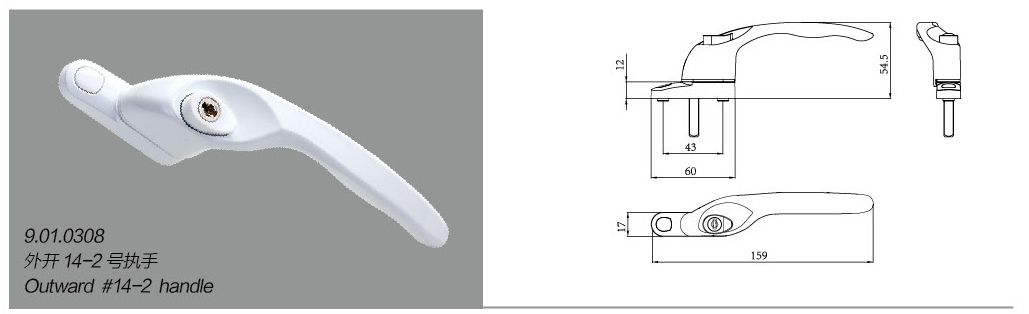

| 9.01.0308 — key-locking espagnolette handle | 60 mm base length; 159 mm plan length; 54.5 mm projection |

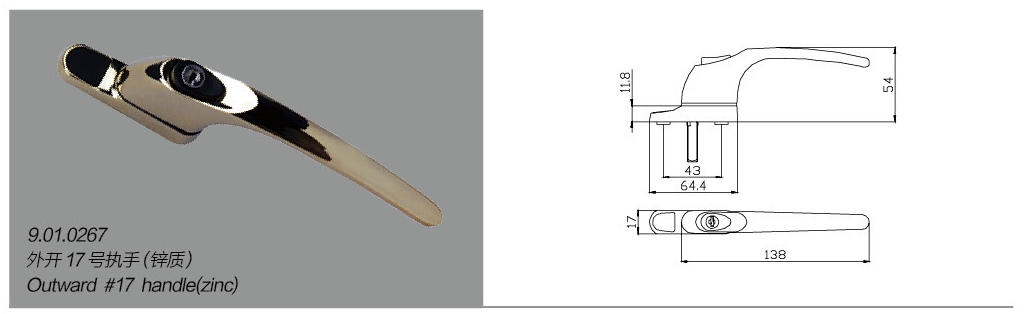

| 9.01.0267 — key-locking espagnolette handle | 64.4 mm base length; 138 mm plan length; 54 mm projection |
| Spindle and fixing screws | Specify square size, spindle projection and screw length to match the selected gearbox and profile |
| Locking options pictured | 9.01.0079, 9.01.0308 and 9.01.0267: key-locking; 9.01.0261: non-locking |
Design variants & installation references
Choose a reference to inspect its designs, dimensions and profile interfaces. Values belong to the models and configurations shown on that reference.
Designs & component dimensions
Key-locking espagnolette handleUPVC · PDF 28 · right panel
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
