Dyad Casement Operators
1 product images
Aluminum / wooden window cranked arm operator
Model: 01/0204–0206 LU/RU/LD/RD
View product detailsNo matching designs. Try another name or model.
Dyad Casement Operators
Aluminum / wooden window cranked arm operator
Model: 01/0204–0206 LU/RU/LD/RD
01/0204–0206 LU/RU/LD/RD
OP-029 · right panel
Application & fitting requirements
| Typical markets | North American crank-operated casement applications. |
|---|---|
| Application | A dyad operator drives the sash through a primary arm and a connecting link. Dyad is an established North American hardware term. |
| Arm and link | Specify primary-arm length, connecting-link length and pivot locations. |
| Offset variant | Select upper or lower offset and the left or right version shown in the model drawing. |
| Bracket and mounting | Match the sash bracket, base-hole pattern and closed-position clearance. |
| Movement path | Check the operator, hinges and sash connection together over the required opening travel. |
Application & fitting requirements
| Typical markets | North American crank-operated casement applications. |
|---|---|
| Application | A dyad operator drives the sash through a primary arm and a connecting link. Dyad is an established North American hardware term. |
| Arm and link | Specify primary-arm length, connecting-link length and pivot locations. |
| Offset variant | Select upper or lower offset and the left or right version shown in the model drawing. |
| Bracket and mounting | Match the sash bracket, base-hole pattern and closed-position clearance. |
| Movement path | Check the operator, hinges and sash connection together over the required opening travel. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.

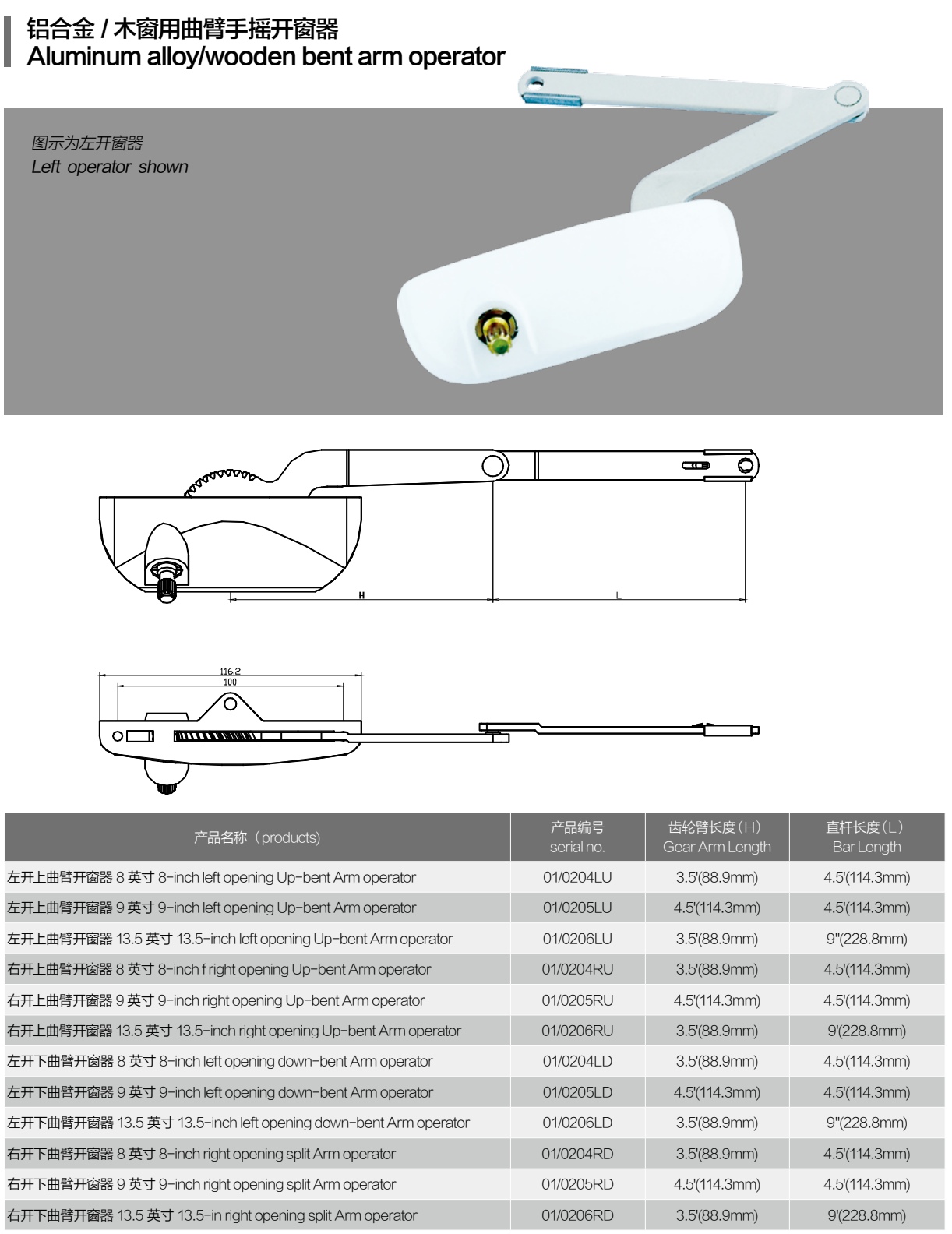

| 01/0204–0206 LU/RU/LD/RD | OP-029 · right panel |
|---|
Design variants & installation references
Choose a reference to inspect its designs, dimensions and profile interfaces. Values belong to the models and configurations shown on that reference.
Designs & component dimensions

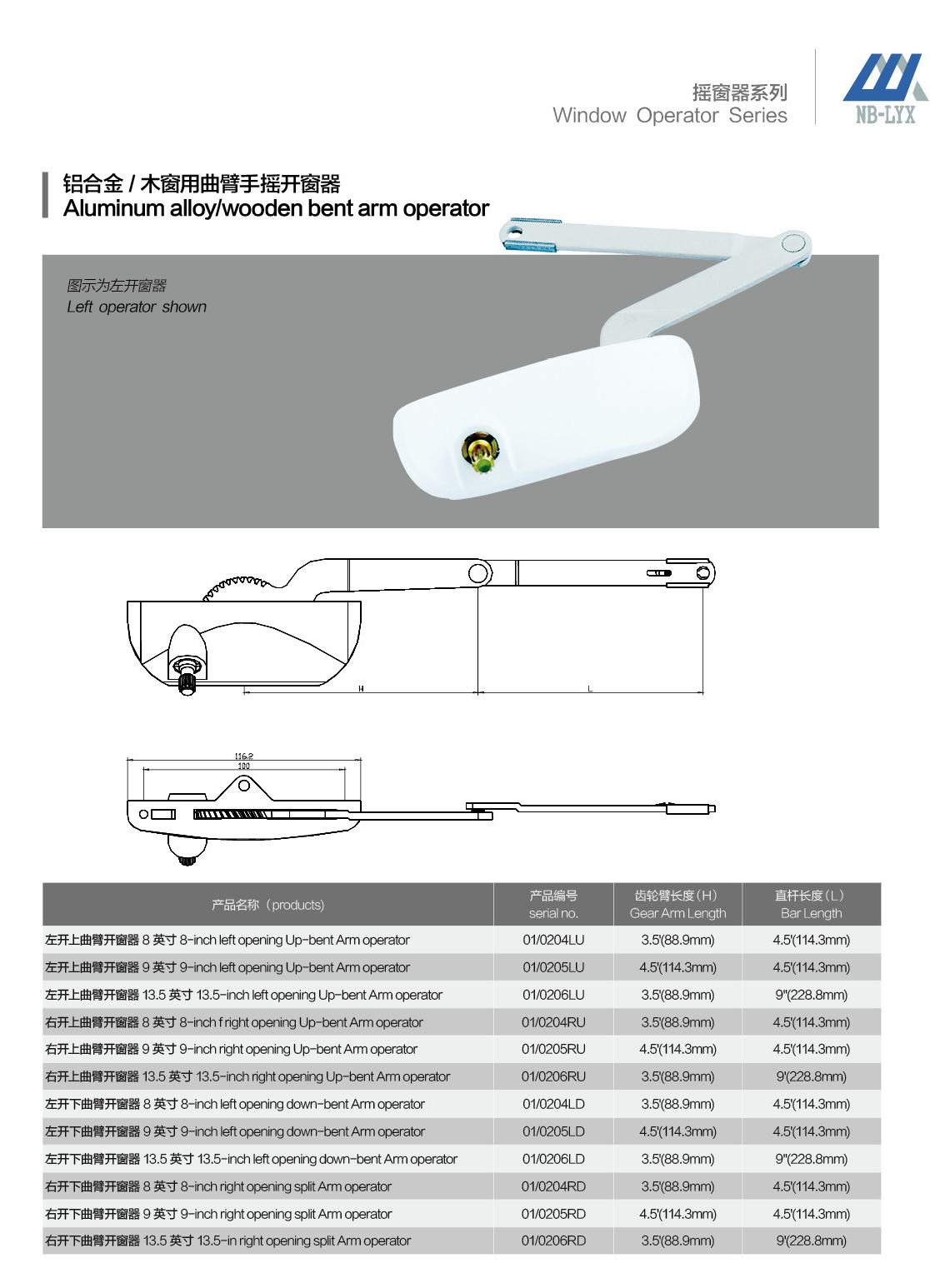

Aluminium and timber-window dyad operatorsAL · PDF 45 · right panel
Profile sections & installation layouts

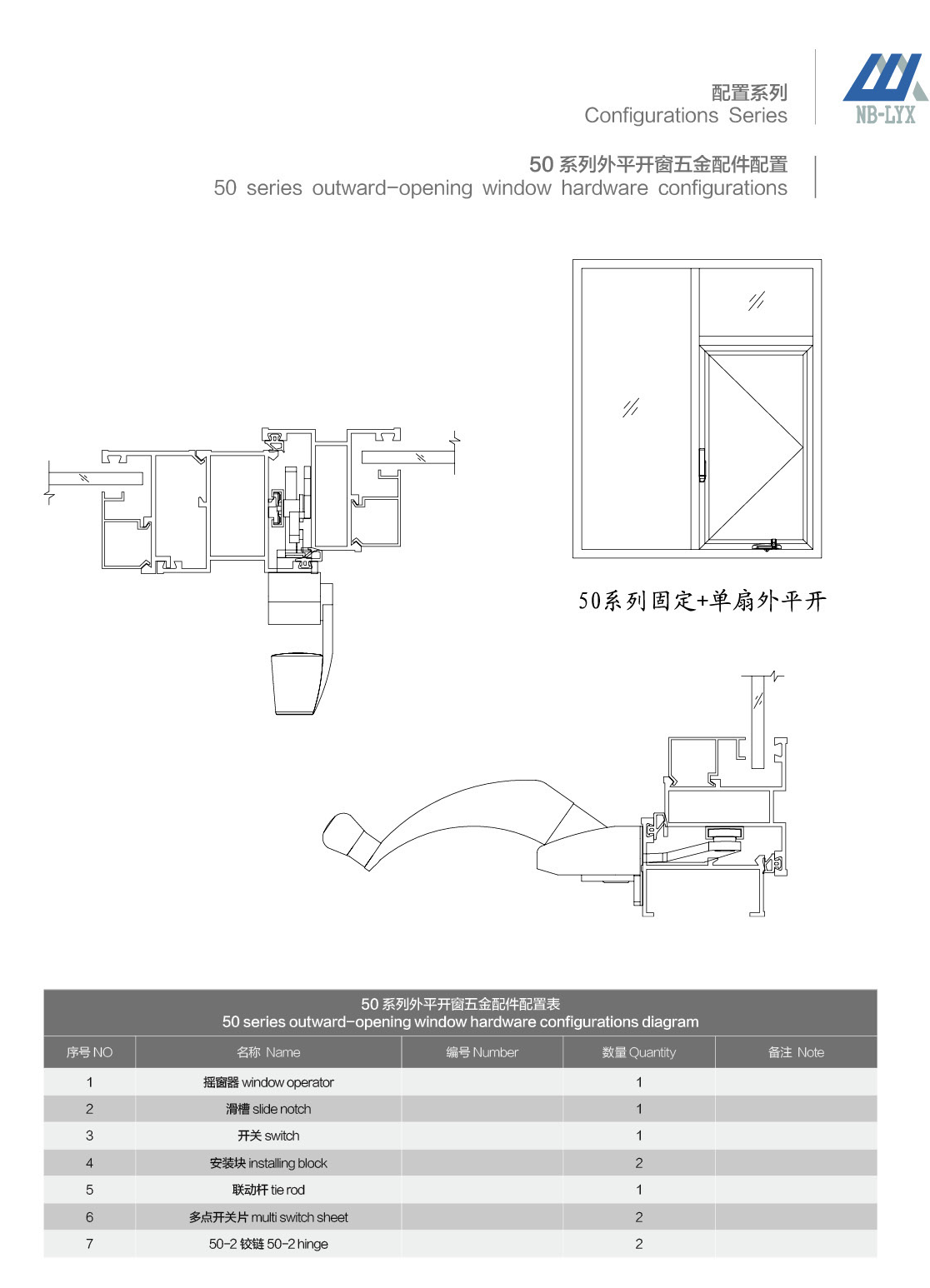

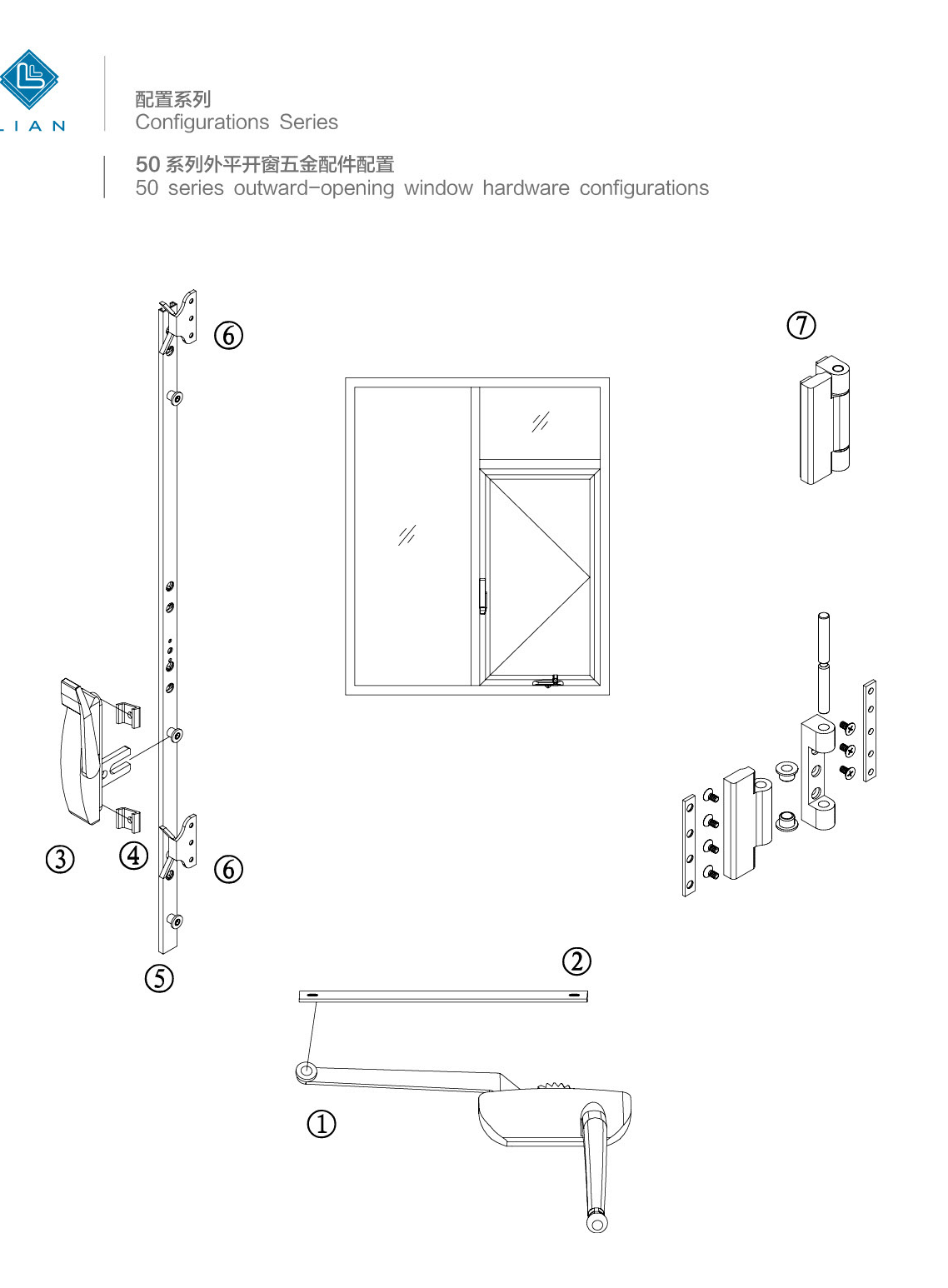

Aluminium crank-operated window installationAL · PDF 18 · left panel
Aluminium crank-operated window installationAL · PDF 18 · right panel

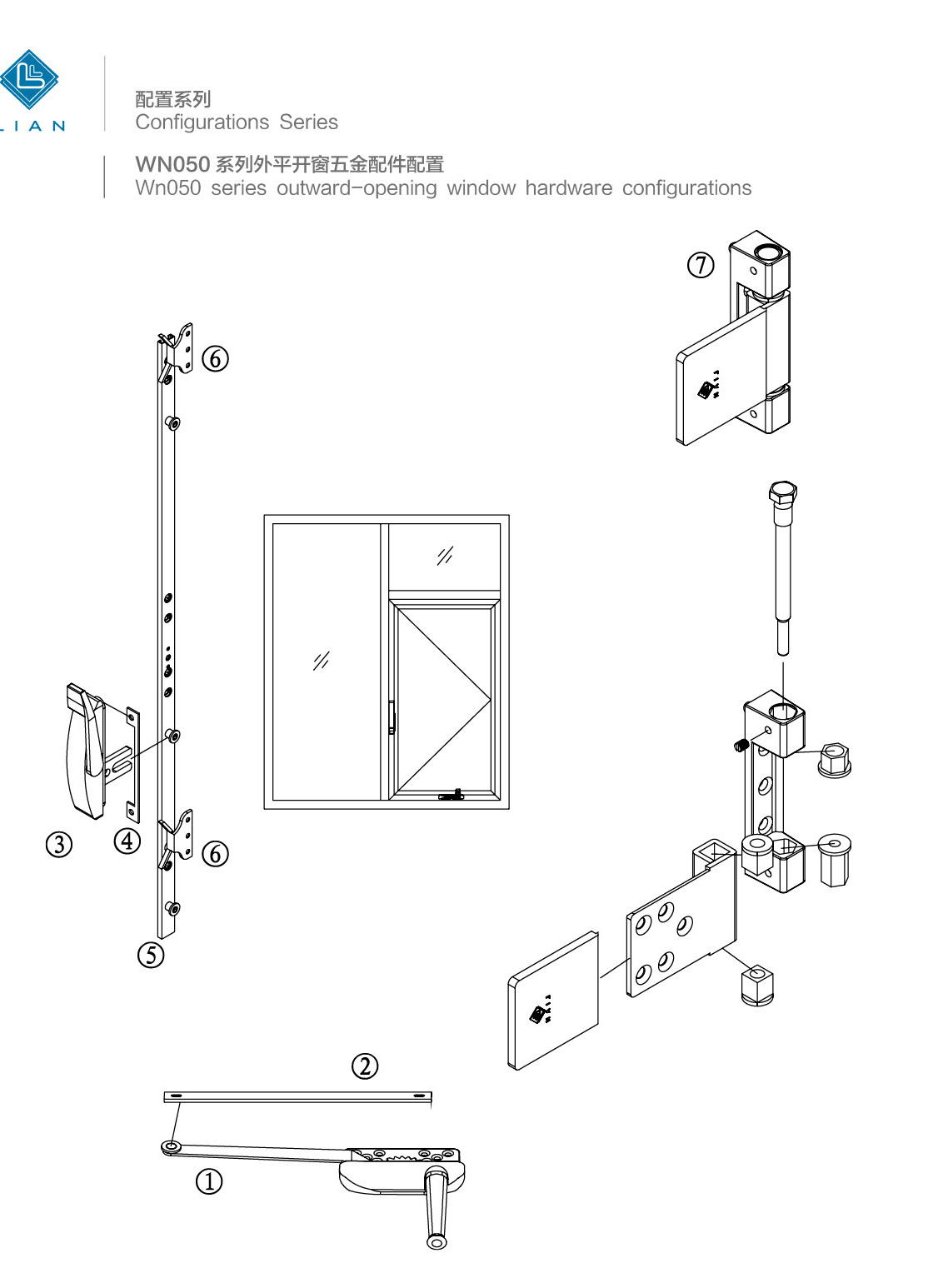

WN050 crank-operated window installationAL · PDF 19 · left panel
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
