Adjustable-PZ Door Handles
Backplate handles with adjustable spindle-to-cylinder centres for matched door-lock applications.
2 product images

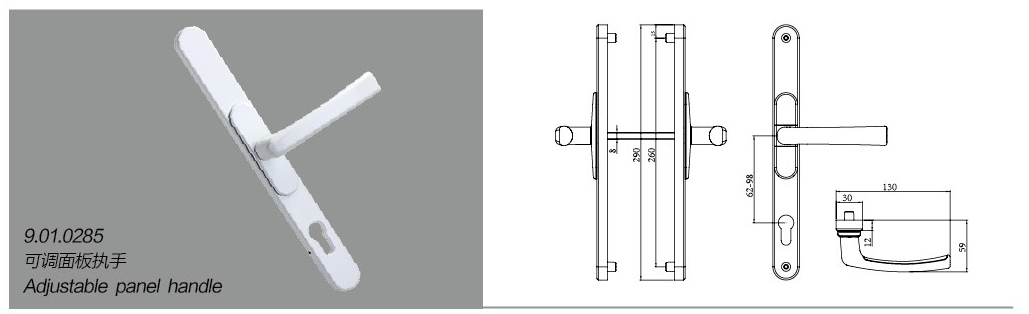

Adjustable panel handle
Model: 9.01.0285
View product details
Adjustable backplate handles — finish options
View product detailsNo matching designs. Try another name or model.
Adjustable-PZ Door Handles
Adjustable panel handle
Model: 9.01.0285
9.01.0285
UPVC-035
Application & fitting requirements
| Typical markets | Adjustable replacement-handle projects, including British and Irish doors when PZ, fixings and lock interfaces match. The adjustment range alone does not establish a country-specific fit. |
|---|---|
| Application | The catalogue reference adjusts PZ: the centre distance between the handle spindle and cylinder. Fixing centres are specified separately. |
| PZ adjustment | Select the required setting within the adjustment range of the named model. |
| Fixing centres | Confirm the mounting-hole spacing independently; adjustable PZ does not mean adjustable screw positions. |
| Backplate coverage | Check plate length and width against the door preparation and any existing holes. |
| Lock and spindle | Match spindle section, cylinder opening, door thickness, handing and operating arrangement. |
Adjustable-PZ Door Handles
Adjustable backplate handles — finish options
Installation interface
Confirm the selected design against the mating hardware, profile section and agreed drawing.
Application & fitting requirements
| Typical markets | Adjustable replacement-handle projects, including British and Irish doors when PZ, fixings and lock interfaces match. The adjustment range alone does not establish a country-specific fit. |
|---|---|
| Application | The catalogue reference adjusts PZ: the centre distance between the handle spindle and cylinder. Fixing centres are specified separately. |
| PZ adjustment | Select the required setting within the adjustment range of the named model. |
| Fixing centres | Confirm the mounting-hole spacing independently; adjustable PZ does not mean adjustable screw positions. |
| Backplate coverage | Check plate length and width against the door preparation and any existing holes. |
| Lock and spindle | Match spindle section, cylinder opening, door thickness, handing and operating arrangement. |
Application & fitting requirements
| Typical markets | Adjustable replacement-handle projects, including British and Irish doors when PZ, fixings and lock interfaces match. The adjustment range alone does not establish a country-specific fit. |
|---|---|
| Application | The catalogue reference adjusts PZ: the centre distance between the handle spindle and cylinder. Fixing centres are specified separately. |
| PZ adjustment | Select the required setting within the adjustment range of the named model. |
| Fixing centres | Confirm the mounting-hole spacing independently; adjustable PZ does not mean adjustable screw positions. |
| Backplate coverage | Check plate length and width against the door preparation and any existing holes. |
| Lock and spindle | Match spindle section, cylinder opening, door thickness, handing and operating arrangement. |
Design reference
Catalogue dimensions & model references
Dimensions apply only to the named model or variant in its linked drawing. A shared family photograph does not define the dimensions of every variant. Custom versions follow the agreed drawing.
| Reference model | 9.01.0285 |
|---|---|
| PZ adjustment shown | 62–98 mm |
| Backplate length | 290 mm |
| Backplate width | 30 mm |
| Fixing centres | 260 mm |
| Square spindle | 8 mm |
| Lever reach shown | 130 mm |
Design variants & installation references
Choose a reference to inspect its designs, dimensions and profile interfaces. Values belong to the models and configurations shown on that reference.
Designs & component dimensions
Adjustable-PZ backplate handleUPVC · PDF 35 · left panel
Made for your specification
Develop your component with Vigour.
Dimensions, material specification, finish, branding and packaging can be developed to your drawing or sample.
Share your selected design, profile section or mating part, required dimensions, finish and estimated order quantity.
